    hengxiang Aluminium alloy suspended platform ZLP630 HomeLocation:Home >> Products >> Suspended Platform

    Aluminium alloy suspended platform ZLP630

    category:Suspended Platform viewed:710 times:2021-12-15

    Aluminium alloy suspended platform ZLP630
    product details
    Aluminium alloy suspended platform ZLP630, as the name implies, the ZLP630 suspended platform is made of high strength aluminium alloy material. Aluminium alloy suspending platform has light weight and high strength, so it is widely used for working at altitude in construct projects.

    Aluminium alloy suspended platform ZLP630 specifications

    MODEL NUMBER

    ZLP630

    Rated Capacity(kg)

    630

    Lifting Speed(m/min)

    9-11

    Rated Power(KW)

    1.5x2

    Hoist Model

    LTD63

    Safety Lock Model

    LSA30/LSA20

    Dimension of platform

    L x W x H(mm)

    6000x690x1180

    Suspension mechanism weight(kg)

    250

    Counterweight(kg)

    800

    Steel Suspension Platform weight(kg)

    500

    Aluminum Suspension Platform weight(kg)

    340

    Above parameter is standard specification of our factory, and we could also meet special requirements on voltage, frequency, platform length according to different countries.

    Product features & applications

    · Made of high strength aluminum alloy
    · Easy to install and operate
    · Powered by advanced motor system
    · A suspended access platform with sufficient capacity to carry huge load.
    · Wide range of application, such as maintenance and construction work concerning unapproachable buildings or objects such as huge tanks, ships, dams, etc.
    · Customized according to customer requirements

    Suspended platform parts

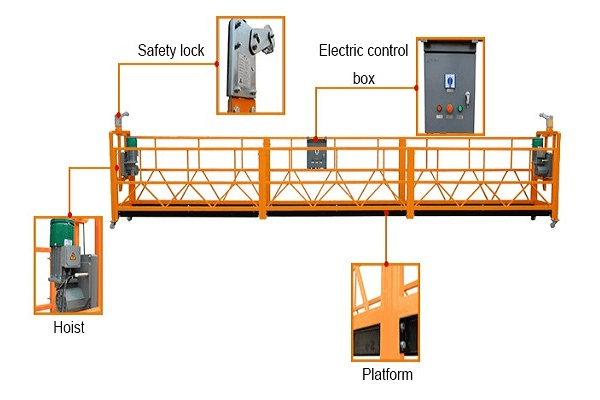

    The ZLP630 suspended working platforms are mainly composed by hoist, suspension mechanism system, electric control box, steel wire rope and working platform.
    aluminium alloy suspended platform

    Our products mainly include suspended platform ZLP500, ZLP630, ZLP800, ZLP1000, and hoist, electric control box, safety lock and steel wire rope. All these suspended platform parts have competitive quality and price.

    About Hengxiang Engineering Materials Co., LTD.

    Hebei Hengxiang Engineering Materials Co., LTD is a leading manufacturer of suspended work platform and scaffolding systems with 11 years of experience. Except for construction gondola lifts, our company also have a wide range of scaffolding products, including mason fram scaffolding, ring-lock scaffolding, adjustable steel shoring props, self-climbing scaffolding systems, and related accessories, such as scaffold plank hooks, scaffolding walk boards, casters, etc.

    Our products have been exported to many countries all over the world, for instance, India, Vietnam, Philippines, Indonesia, Peru, Singapore, Romania, Armenia, Jamaica, Russia, etc. If you have any purchase plan for our products, please get in touch with our team to get more details and a quotation.
