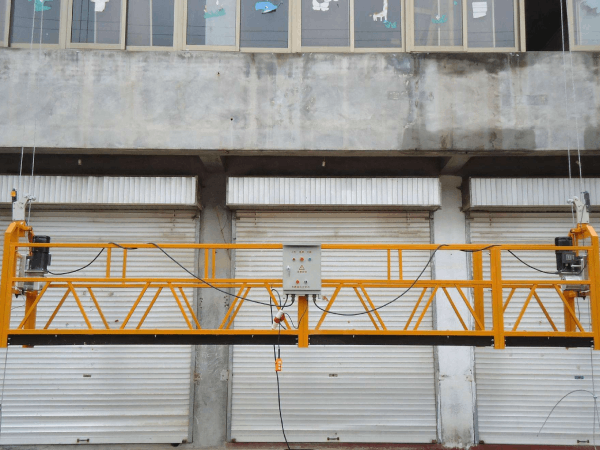

ZLP800 suspended cradle, is also known as ZLP800 suspended working platform in construction. The suspended cradle makes high-rise building facades working safer and easier. The suspended platform cradle system can be widely used for external brickwork, plastering, painting, cleaning etc.
ZLP800 Suspended Cradle Parts/Components
A complete ZLP800 suspended platform cradle system is mainly including two parts: working platform and suspension mechanism.
The suspended cradle parts are including electric control box, hoist, safety lock, steel wire rope and working platform. The working platform is usually made of steel with hot galvanized, painted or aluminum alloy.
And the suspension mechanism consists of front support, upper column, front beam, rear beam, middle beam, balance weight, rear support. In addition, in the absence of a roof to place the suspension, workers use parapet clamps.
ZLP800 Suspended cradle specifications
|
MODEL NUMBER
|
ZLP1000
|
ZLP800
|
ZLP630
|
ZLP500
|
|
Rated Capacity(kg)
|
1000
|
800
|
630
|
500
|
|
Lifting Speed(m/min)
|
8-10
|
8-10
|
9-11
|
9-11
|
|
Rated Power(KW)
|
2.2x2
|
1.8x2
|
1.5x2
|
1.1x2
|
|
Hoist Model
|
LTD100
|
LTD80
|
LTD63
|
LTD50
|
|
Safety Lock Model
|
LSA30/LSA20
|
LSA30/LSA20
|
LSA30/LSA20
|
LSA30/LSA20
|
|
Dimension of platform L x W x H(mm)
|
7500x690x1180
|
7500x690x1180
|
6000x690x1180
|
5000x690x1180
|
|
Suspension mechanism weight(kg)
|
250
|
250
|
250
|
250
|
|
Counterweight(kg)
|
1250
|
1000
|
800
|
750
|
|
Steel Suspension Platform weight(kg)
|
700
|
600
|
500
|
400
|
|
Aluminum Suspension Platform weight(kg)
|
590
|
440
|
340
|
290
|
|
Note: Suspended platform including hoist, safety lock, electric control panel.
|
Product features
1. All of the individual components are easy to assemble and dismantle
2. The length of working platform can be adjusted within 1m-10m.
3. The working height can be adjusted with customers' need.
4. The voltage can be adjusted with customer's requirement.
5. 3 Types of materials : steel painted, steel with hot galvanized, or aluminum alloy.
