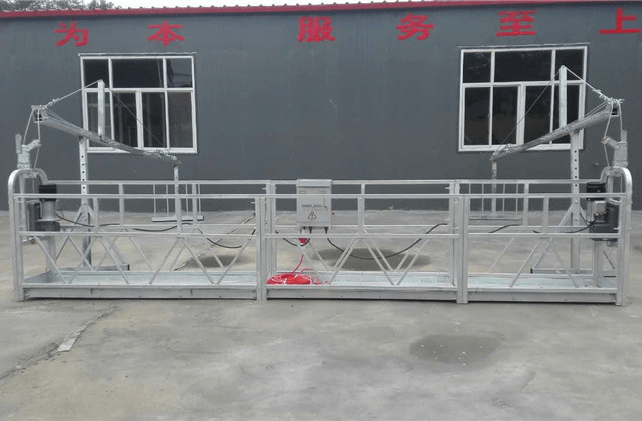

ZLP1000 Suspended Scaffolding System

ZLP1000 suspended scaffolding system is a kind of high-rise construction equipment. The suspended scaffolding system is widely used for construction, painting, decoration, maintenance, cleaning of high building facade. Meanwhile, this suspended working platform can also be used for bridges, ships, chimney and other large construction project.

ZLP1000 suspended scaffolding system parts:

1. Platform(basket):

2. Suspension Mechanism

3. Electric hoists

4. Safety Lock

5. Electric control box

6. Steel wire rope

7. Electric cable

8. Counterweights

ZLP1000 suspended platform specifications

MODEL NUMBER	ZLP1000	ZLP800	ZLP630	ZLP500
Rated Capacity(kg)	1000	800	630	500
Lifting Speed(m/min)	8-10	8-10	9-11	9-11
Rated Power(KW)	2.2x2	1.8x2	1.5x2	1.1x2
Hoist Model	LTD100	LTD80	LTD63	LTD50
Safety Lock Model	LSA30/LSA20	LSA30/LSA20	LSA30/LSA20	LSA30/LSA20
Dimension of platform L x W x H(mm)	7500x690x1180	7500x690x1180	6000x690x1180	5000x690x1180
Suspension mechanism weight(kg)	250	250	250	250
Counterweight(kg)	1250	1000	800	750
Steel Suspension Platform weight(kg)	700	600	500	400
Aluminum Suspension Platform weight(kg)	590	440	340	290
Note: Suspended platform including hoist, safety lock, electric control panel.

Applications of suspended scaffolding ZLP1000:

1.Cleaning, painting and maintaining of the exterior wall of high-rise building.

2.Install and maintain for high-rise building elevator hoistway, shipbuilding industry, seagoing vessel, warships welding maintain.

3. Aerial working of ship, large tower, bridge, dams and large chimneys.

Hengxiang produces ZLP1000 suspended platform system with advanced standardized process and strict inspection system. You can always buy our ZLP series suspended scaffolding with confidence. Welcome to send your inquiry anytime. Tel & WHATS APP: +8617731713701
