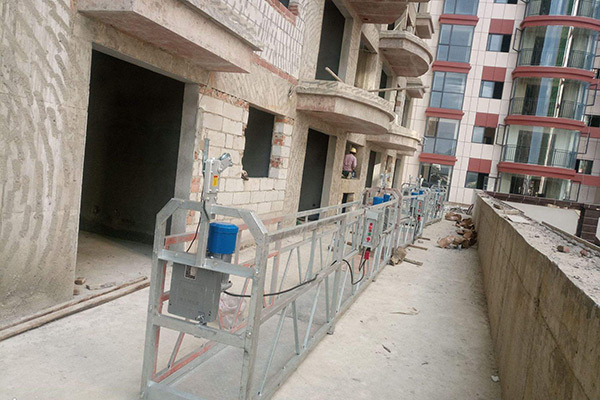

The ZLP800 swing stage scaffold has many important pars, including electric control box, working platform/basket, suspension mechanism, traction hoists, safety locks, counter weight, steel wire rope and so son.
Demension of Swing stage scaffold
|
MODEL NUMBER
|
ZLP1000
|
ZLP800
|
ZLP630
|
ZLP500
|
|
Rated Capacity(kg)
|
1000
|
800
|
630
|
500
|
|
Lifting Speed(m/min)
|
8-10
|
8-10
|
9-11
|
9-11
|
|
Rated Power(KW)
|
2.2x2
|
1.8x2
|
1.5x2
|
1.1x2
|
|
Hoist Model
|
LTD100
|
LTD80
|
LTD63
|
LTD50
|
|
Safety Lock Model
|
LSA30/LSA20
|
LSA30/LSA20
|
LSA30/LSA20
|
LSA30/LSA20
|
|
Dimension of platform
L x W x H(mm)
|
7500x690x1180
|
7500x690x1180
|
6000x690x1180
|
5000x690x1180
|
|
Suspension mechanism weight(kg)
|
250
|
250
|
250
|
250
|
|
Counterweight(kg)
|
1250
|
1000
|
800
|
750
|
|
Steel Suspension Platform weight(kg)
|
700
|
600
|
500
|
400
|
|
Aluminum Suspension Platform weight(kg)
|
590
|
440
|
340
|
290
|
|
Note: Suspended platform including hoist, safety lock, electric control panel.
|
Application fo Swing stage scaffold ZLP800

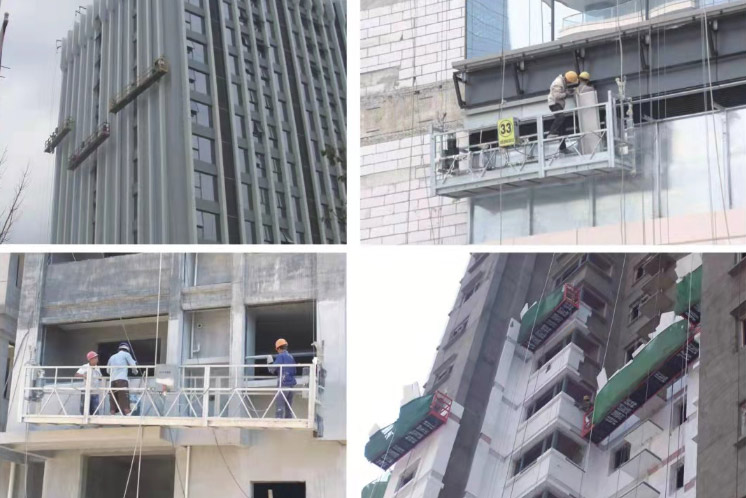

The swing stage scaffold is usually used for window cleaning of high buildings, maintanece, repairing, coating and painting in high rise construction work.
About Hengxiang Engineering Materials Co., LTD
Hebei Hengxiang Engineering Materials Co., LTD is a professional and experienced manufacturer of construction gondola lift. Our ZLP suspended platforms have passed the CE & ISO certifications.
