    hengxiang ZLP1000 hanging work platform, construction gondola HomeLocation: Home >> Products >> Suspended Platform

    ZLP1000 hanging work platform, construction gondola

    category: Suspended Platform viewed: 1860 times: 2022-02-03

    ZLP1000 hanging work platform, construction gondola
    product details
    ZLP1000 hanging work platform is also called gondola in construction. Compared with other models of gondolas, the ZLP1000 model gondola has a higher carrying capacity.

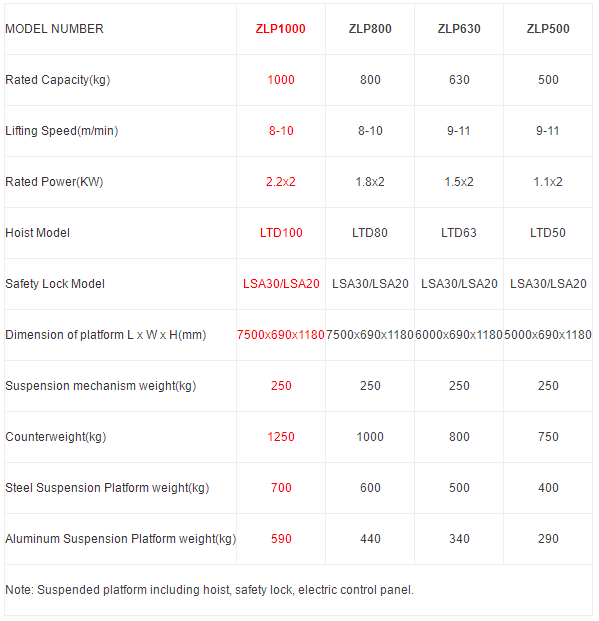

    Specification of ZLP1000 hanging work platform

    zlp1000 hanging work platform

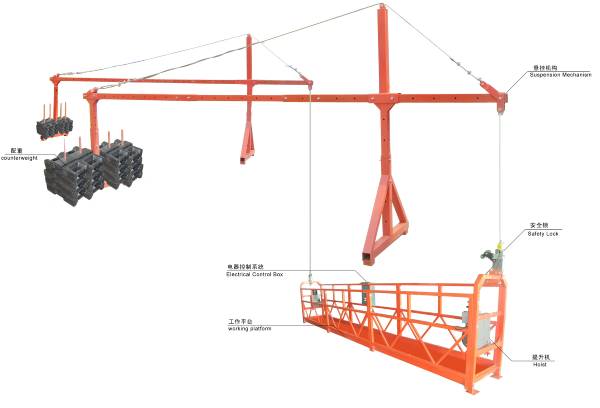

    ZLP1000 hanging work platform parts

    1.Suspension Mechanism
    2. Working Platform
    3. LTD Series Hoist
    4. LSB Safety Lock
    5. Electric Control Box
    6. Steel Wire Rope
    The structure of ZLP1000 suspended platform cradle is simple.And it is very easy to assemble and disassemble according to the actual needs.
    zlp1000 hanging work platform

    Safety systems of electric gondola

    To ensure safe operation without danger to personnel, the platform is fitted with the following safety devices:
    1. Service brake incorporated in the LTD hoist.
    2. Two fall arrest devices acting on the safety wire ropes.
    3. Two upper limit switches.
    4. No power descent in case of power failure.
    5. Emergency stop.
    6. Phase controller. (Option)
    7. Overload sensor incorporated in the LTD hoists according to EN 1808. (Option)

    Application of ZLP1000 hanging work platform

    The steel or aluminium alloy suspended platform is a suitable high-rise working lift device, which is widely used for painting and decorating, refurbishing, repairs, windows cleaning of high-rise building, curtain wall installation, large tanks, bridges, dams and other construction operations.

    Features of hanging work platform system

    1. Combination of the bottom platform, the length can be adjusted from 1M to 12M.
    2. Convenient and reliable electric control system: Different power supply are acceptable from 220v to 480v, 50/60Hz,Single or three phases.
    3. Reasonable structure, attractive appearance and durable working performance
    4. The working height can be adjusted according to customer need from 0-200m.
    5. Multiple material options: aluminum alloy material or steel (finish treatment: power coated, hot galvanized)
    6. Famous brand of steel wire rope
    7. CE & ISO international certified manufacturer.
    8. OEM Solutions supported according to customers construction site situation.
    9. Factory directly sale with low cost control and high quality parts.

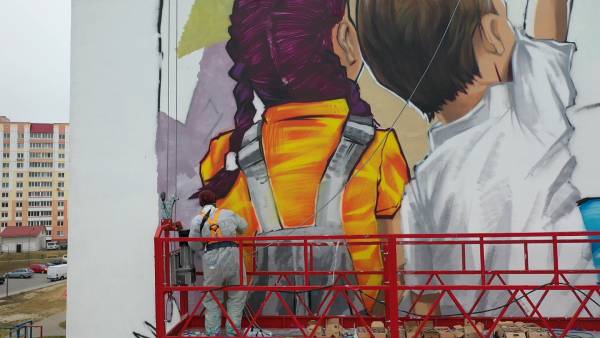

    ZLP1000 hanging platform

    About Hengxiang suspended platform

    Hebei Hengxiang Engineering Material Co., Ltd is one of the leading suspended platform manufacturers in China. Our main products are high altitude electric hanging platforms and related accessories, frame scaffoldings, ring-lock scaffoldings, adjustable steel props, etc.

    And our hanging platforms have been exported to more than 20 countries, including India, Russia, Chile, Italy, Mexico, Ukraine and so on. Our hanging platform has been used in every aerial area with the main models ZLP500, ZLP630, ZLP800, and ZLP1000. The Voltage and Frequency could be up to different countries' standards, such as single-phase 220V, triplicate-phase 220V, 380V.
    suspended platform
    We also have a professional hanging platform design team to ensure the products quality and safety. Our ZLP series suspended platform and related accessories have obtained ISO9001:2000 & CE certifications. For products prices, customization, or other inquiries, please feel free to contact us. We will provide you with the latest quotations and reasonable procurement solutions.

    The previous: ZLP800 aluminum hanging work platform
    Next one: Construction lifting cradle, ZLP630 suspended platform
